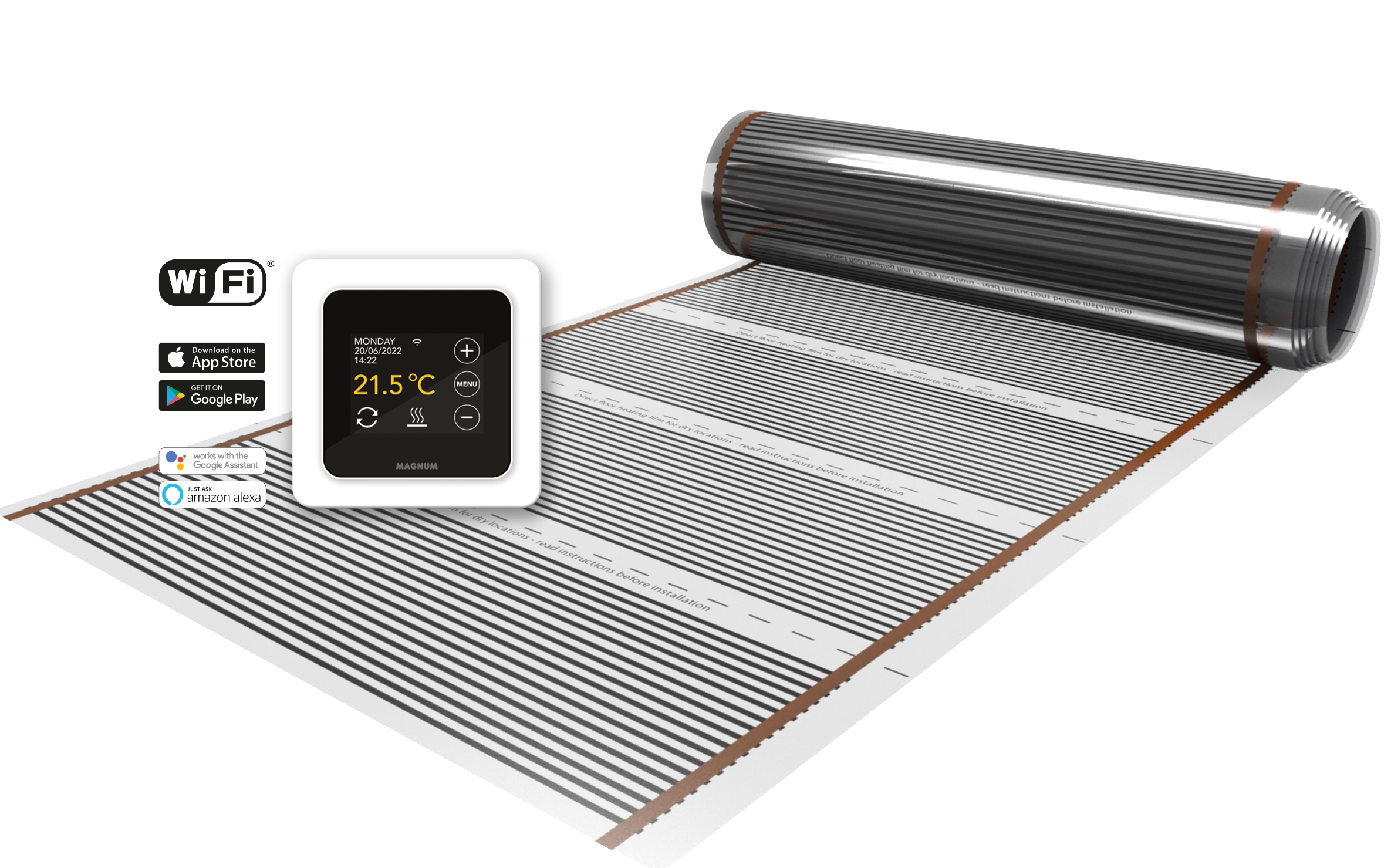

MAGNUM Foil (Set)
Wood, parquet and laminate are durable and atmospheric products that are increasingly being used. The demand for a heating system for these floors has led to the development of a new high-tech product. MAGNUM now offers a solution for these “dry” floors. The MAGNUM Foil underfloor heating foil is directly applicable under wood, parquet or laminate. This wafer-thin floor heating system (only 0,3 mm!) is controlled by a WiFi clock thermostat with floor sensor. This ensures very even heating. The floor temperature can be limited to a maximum temperature by means of the floor sensor and thermostat.
The advanced WiFi thermostat takes into account the necessary warm-up time, so that your floor always has the right temperature at the right time. The foil should be installed on 6 mm thin polystyrene insulation plates (MAGNUM Isofoam). These insulation plates provide additional thermal insulation and also have a sound-absorbing effect.
MAGNUM Foil is very easy to cut to size. Safe, comfortable and easy to use: MAGNUM Foil ensures a comfortable living and working environment, even on dry floors!
Installation method

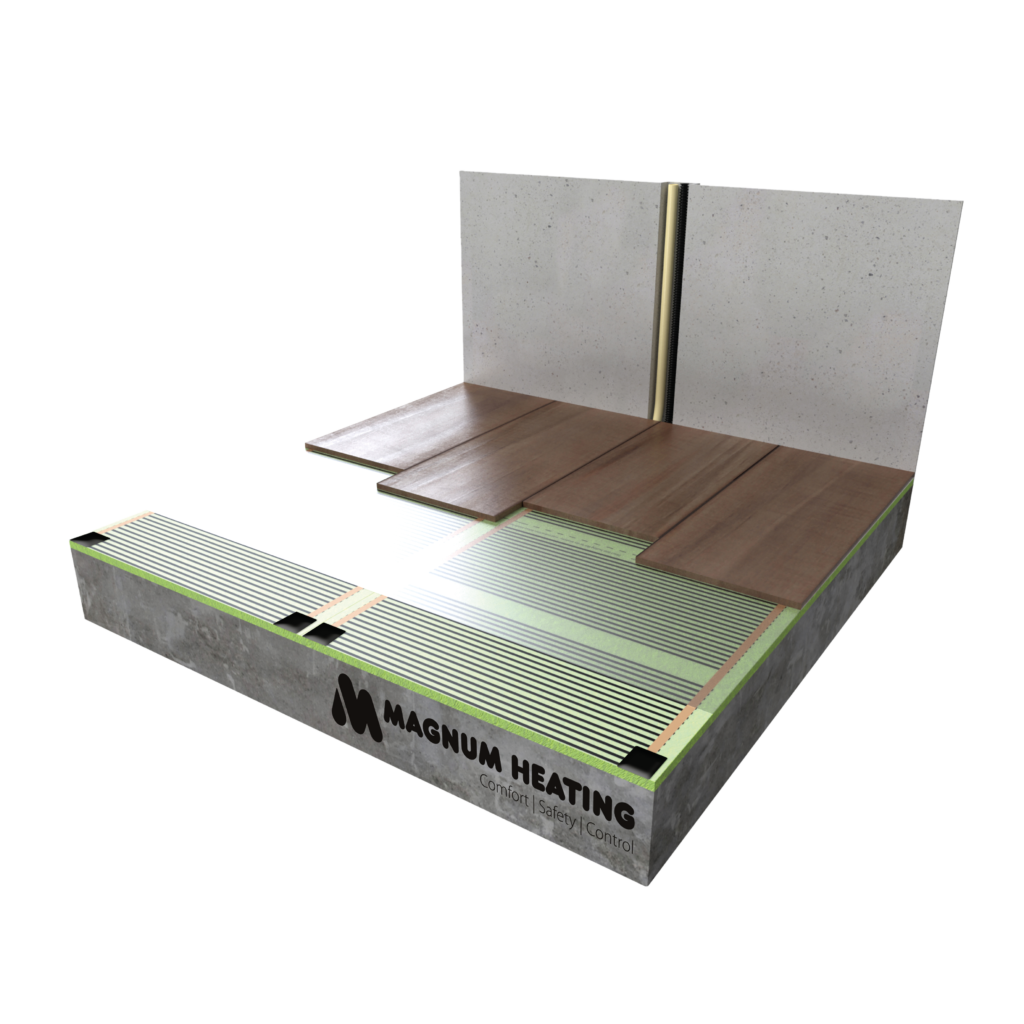

MAGNUM Foil is connected to 230V. Installation must therefore be carried out by a qualified electrician. MAGNUM Foil should always be installed with MAGNUM polystyrene insulation plates (MAGNUM Isofoam, 6 mm), and covered with a vapour barrier foil (0,1 mm).
| Art.nr. white | Art.nr. black | Description | Dimensions | Power |
| 361005 | 371005 | MAGNUM Foil Set 5 m2 * | 0,6 x 8,4 m | 600 Watt |
| 361010 | 371010 | MAGNUM Foil Set 10 m2 * | 0,6 x 16,8 m | 1200 Watt |
| 361015 | 371015 | MAGNUM Foil Set 15 m2 * | 0,6 x 25 m | 1800 Watt |
| 361110 | MAGNUM Foil add-on set 10 m2 ** | 0,6 x 16,8 m | 1200 Watt |
| Art.nr. | Description | Dimensions | Power m2 |
| 360120 | MAGNUM Foil loose per m2 on roll | 0,6 x ? m | 120 Watt |
| Art.nr. | Options | Dimensions |
| 720807 | MAGNUM Vapour barrier film 12 m2 | 4 x 3 m. x 0,1 mm |
| 720810 | MAGNUM Foil pressure divider and crimping pliers | |
| 720815 | MAGNUM Foil connection set for 10 m² folie ** | |
| 730300 | MAGNUM Isofoam PS Insulation 6 m2 | 10 à 120 x 50 x 0,6 cm |
* Set contains: MAGNUM Foil 120 Watt/m², MAGNUM Remote Control WiFi thermostat with floor sensor, flexible sensor tube, 2 x 15 m connection wire black/blue, necessary crimp connectors, pressure distribution and crimping pliers, vulcanised insulation tape, PP tape, installation instructions.
** Set contains: 2 x 15 m black/blue connection wire, required crimp connectors, vulcanised insulation tape, PP tape, foil 10 m2.
Specifications
| System type | Electric |
| System height | 0,3 mm |
| System width | 600 mm |
| Min. setting height | 1 cm |
| Installation | Dry Construction |
| Power | 120 W/m2 |
| In wet areas | X |
| Tiles | X |
| Wood | V |
| Laminate | V (no PVC) |
| Carpet | V |
| Certification | CE, SEMKO |
| Colour thermostat | Polar white, Graphite black |
| Warranty | 10 years |
Technical details
Package content
- Foil on rolls of 5, 10 or 15 m² (120 W/m²)
- MAGNUM Remote Control WiFi thermostat (White or Black) inclisive floor sensor
- Flexible sensor tube
- Insulating tape
- Connection clamps
- Connection wires
- Installation instructions
- Pressure reducers and crimping pliers
To be ordered separately (depending on the number of m²)
- MAGNUM Isofoam, PS insulation plates, per pack 6 m²
- Vapour barrier foil.
Warranty
10 years guarantee on the electrical function of MAGNUM Foil and 2 years on the thermostat and floor sensor.
