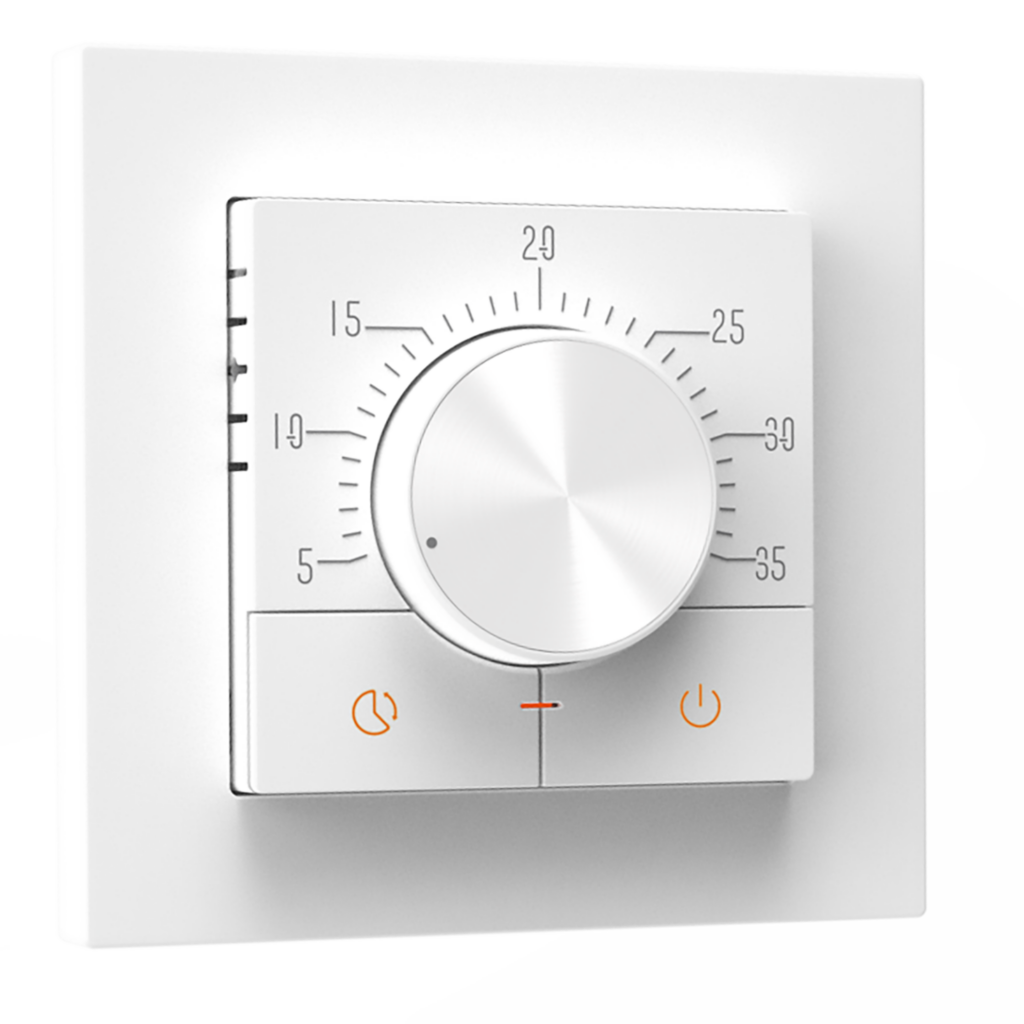

In some situations, a digital control is less necessary, and a simple on/off control is preferred. Especially in industrial applications or if continuous heating is required. For this purpose MAGNUM has developed the Standard Control: a simple on/off thermostat with temperature control that excels in simplicity and ease of use.
| Art.nr. | Description | Color code |
| 827000 | MAGNUM Standard Control On/Off Thermostat | Polar white – RAL 9010 |
Specifications
| Type | On/off thermostat |
| Suitable for | Electrical systems |
| Controls | Physical buttons |
| Sensors | Room and floor sensor (12K) |
| Voltage | 230V – 50/60Hz |
| Maximum load | 16A / 230V |
| Temperature range | +5 / +40°C |
| Housing | IP21 |
Warranty
2 year guarantee on the electrical operation and floor sensor.
Technical details
- Voltage 230 Volt – 50/60 Hz
- Max. load 16A / 230 V
- Temperature range +5 / +40°C
- Housing IP21
- Color Polar white (RAL 9010)
- Certification CE
- On/off thermostat with temperature control
- Includes floor sensor (12K)
- Built-in room sensor and floor limit sensor

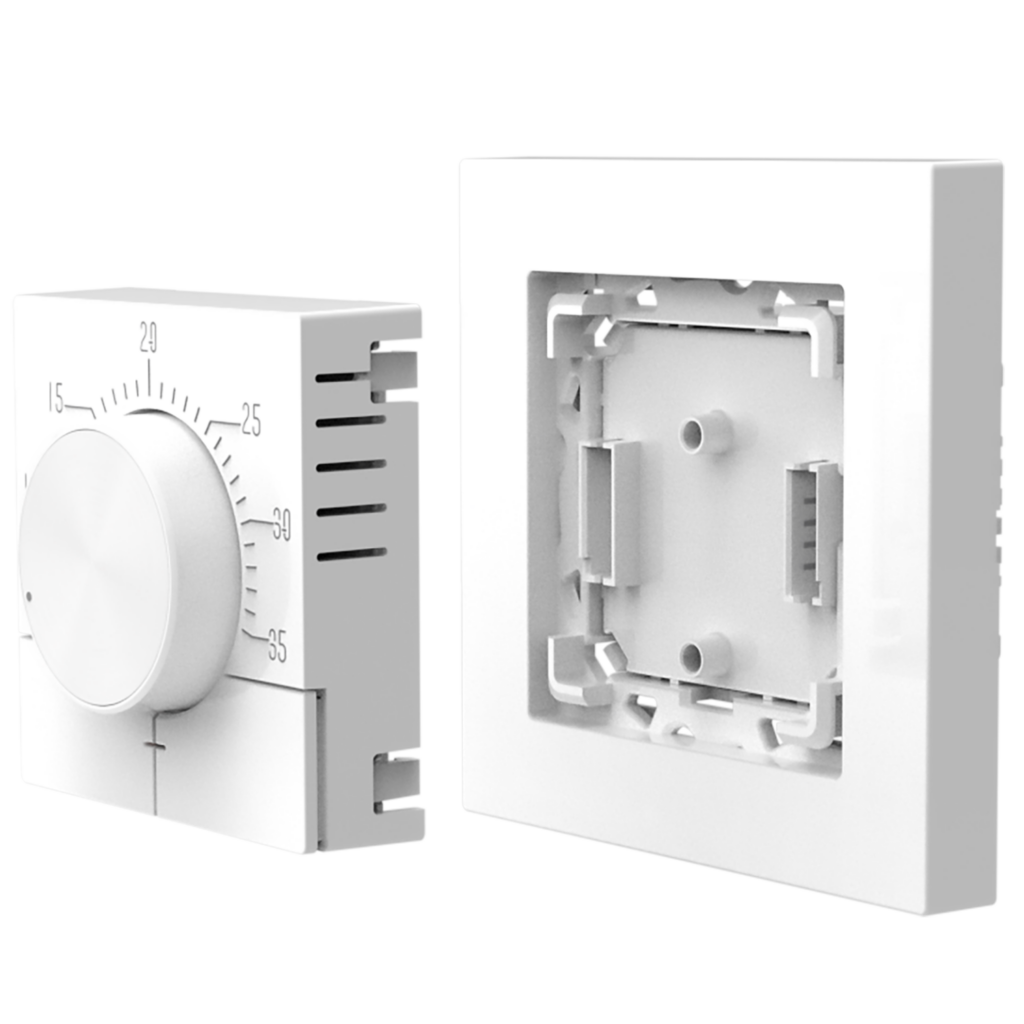

- Multi-frame adapter system for: Gira, Jung, Elko, Merten, Busch Jager etc.
Installation method
Suitable for electric heating systems.
Package content
- Thermostat
- Installation instructions
- Floor sensor (12K)
- Two frames
