MAGNUM Outdoor Cable Asfalt
Especially for installation in asphalt
Installation in unrolled asphalt

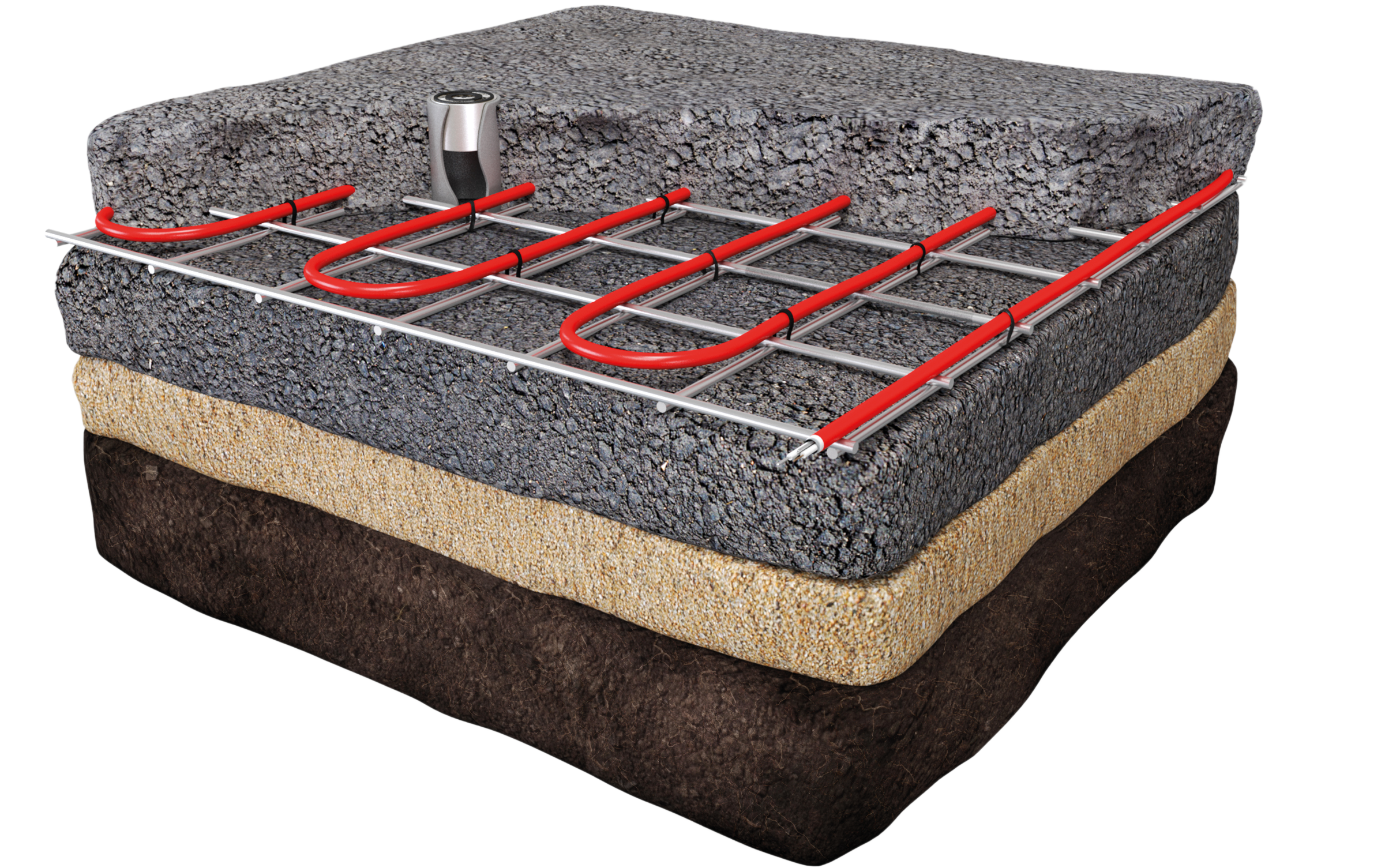

Especially for large areas, such as loading docks or driveways for car parks, where safety must be ensured. MAGNUM Outdoor Cable can be fixed directly to the reinforcement before the sand bed, concrete or asphalt is poured.
MAGNUM Outdoor is a highly advanced system of heating cables, 2 sensor units that measure humidity in combination with the outdoor temperature and a custom-made control cabinet.

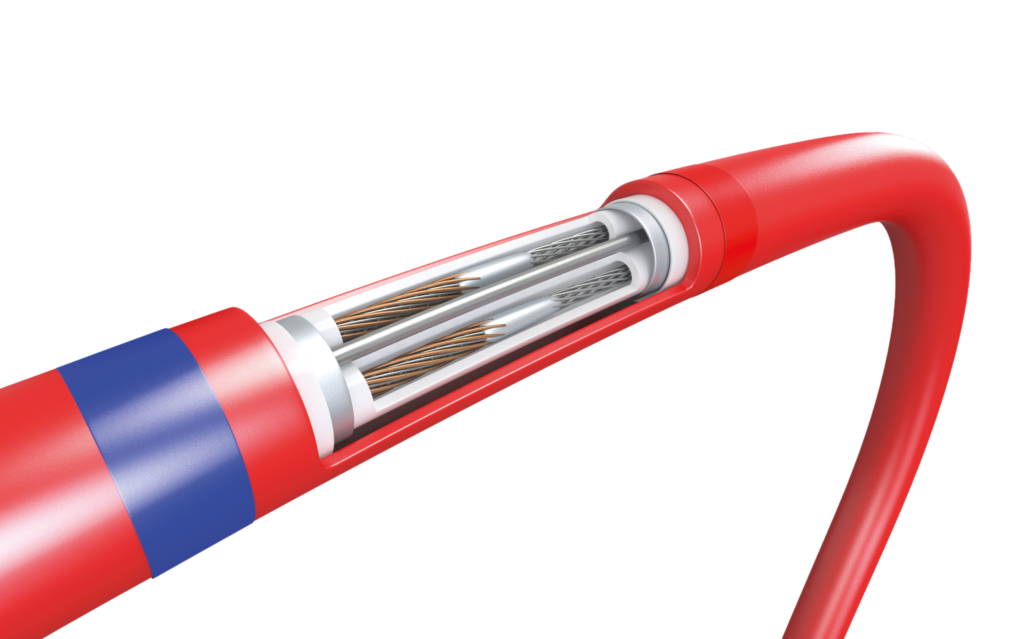

The power supply cable is uniquely connected to the resistance wire. The aluminium reinforcement jacket protects the resistance wires against mechanical damage and shields the cable against EMC (electromagnetic radiation). This has the advantage that the cable does not interfere with mobile phones, electrically operated garage doors and gates, security installations etc.
The cable is equipped with PTFE (Teflon) inner sheaths and a PVC outer sheath that is resistant to the action of chemicals.
Complete systems
MAGNUM Outdoor installations are specially drawn and designed per order. A complete watertight control cabinet (IP-65) is manufactured and fitted out in proportion to the number of cables/mats and power. For larger projects, the control cabinet can be expanded to include modulating power regulators up to 50kW that prevent peak loads and also save energy. The system can be implemented in both 230V and 400V.
Installation methods (complete systems)
MAGNUM Outdoor systems are calculated and designed per order.

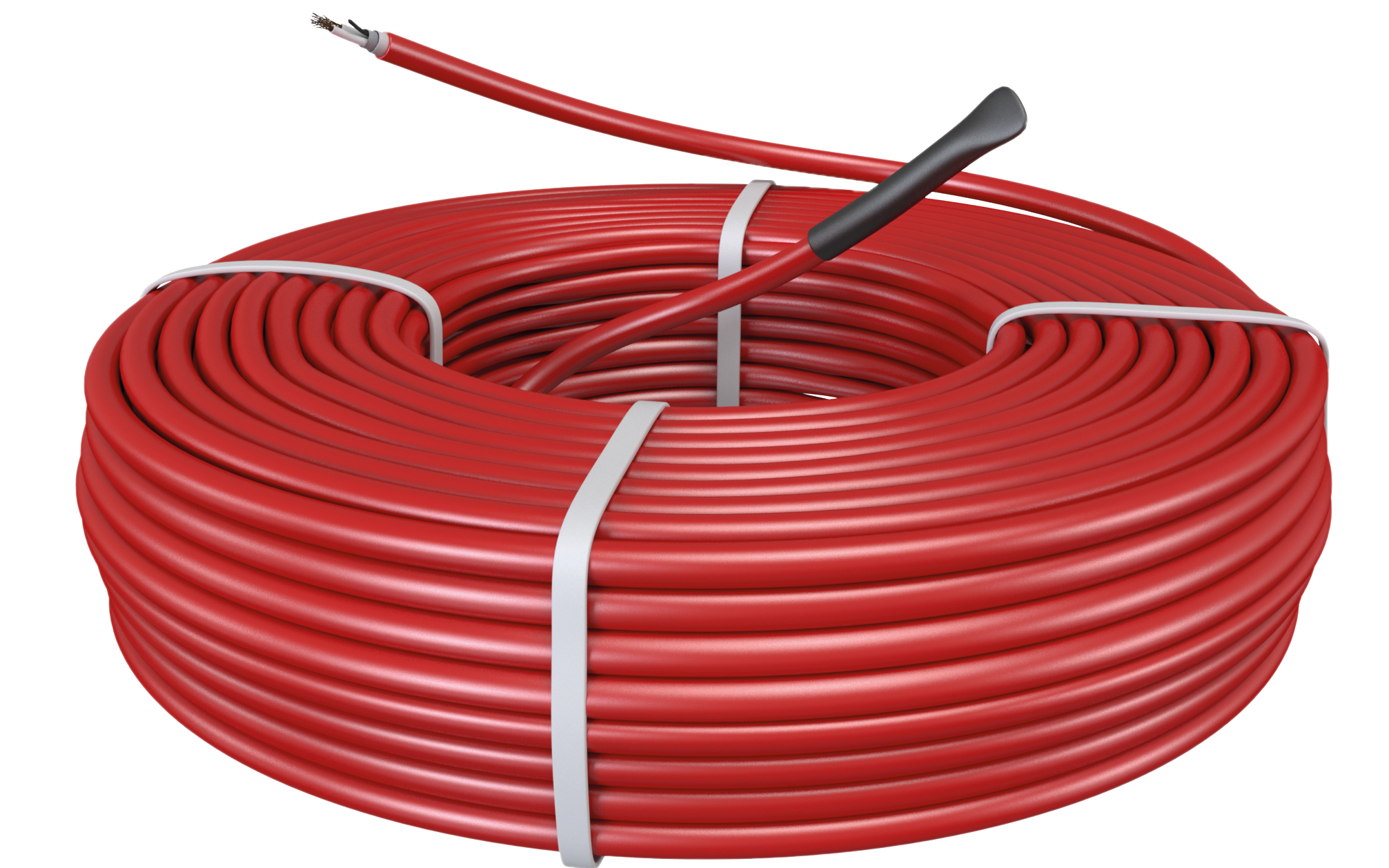

MAGNUM Outdoor Cable Asphalt 30W/m1
| Art.nr. | Length | Length connecting wire | Power | Volt | Amps | Ohm |
| 125006 | 20 m | 10 m | 600 Watt | 230V | 2,6 | 88,2 |
| 125012 | 40 m | 10 m | 1200 Watt | 230V | 5,2 | 44,1 |
| 125019 | 63,3 m | 10 m | 1900 Watt | 230V | 8,3 | 27,8 |
| 125034 | 113,3 m | 10 m | 3400 Watt | 230V | 14,8 | 15,6 |
Specifications
| Sand bed + bricks | V |
| Concrete | V |
| Cold asphalt | V unrolled processing! |
| Asphalt < 240oC | V unrolled processing! |
| Inner jacket | PFTE (Teflon) |
| Outer jacket | PVC |
| Length of connecting wire | 10 m |
| Power | 30 Watt/m1 |
| Connection voltage | 230 V/50Hz |
| Certification | IEC 800, CE, IPX7, VDE |
| Warranty | 10 year |
Technical details
- Power 30 Watt/m1
- Cables available from 600 to 3400 Watt
- Connection voltage 230 V/50Hz
- Standards IEC 800 and CE
- Certification ISO 9001
- Class IPX7
- Core insulation PTFE (Teflon)
- Suitable for unrolled mastic asphalt up to 240°C
Installation methods (complete systems)
MAGNUM Outdoor systems are calculated and designed per order.
Warranty
MAGNUM Outdoor Cable has a 10 year warranty on the electrical function of the cable.
