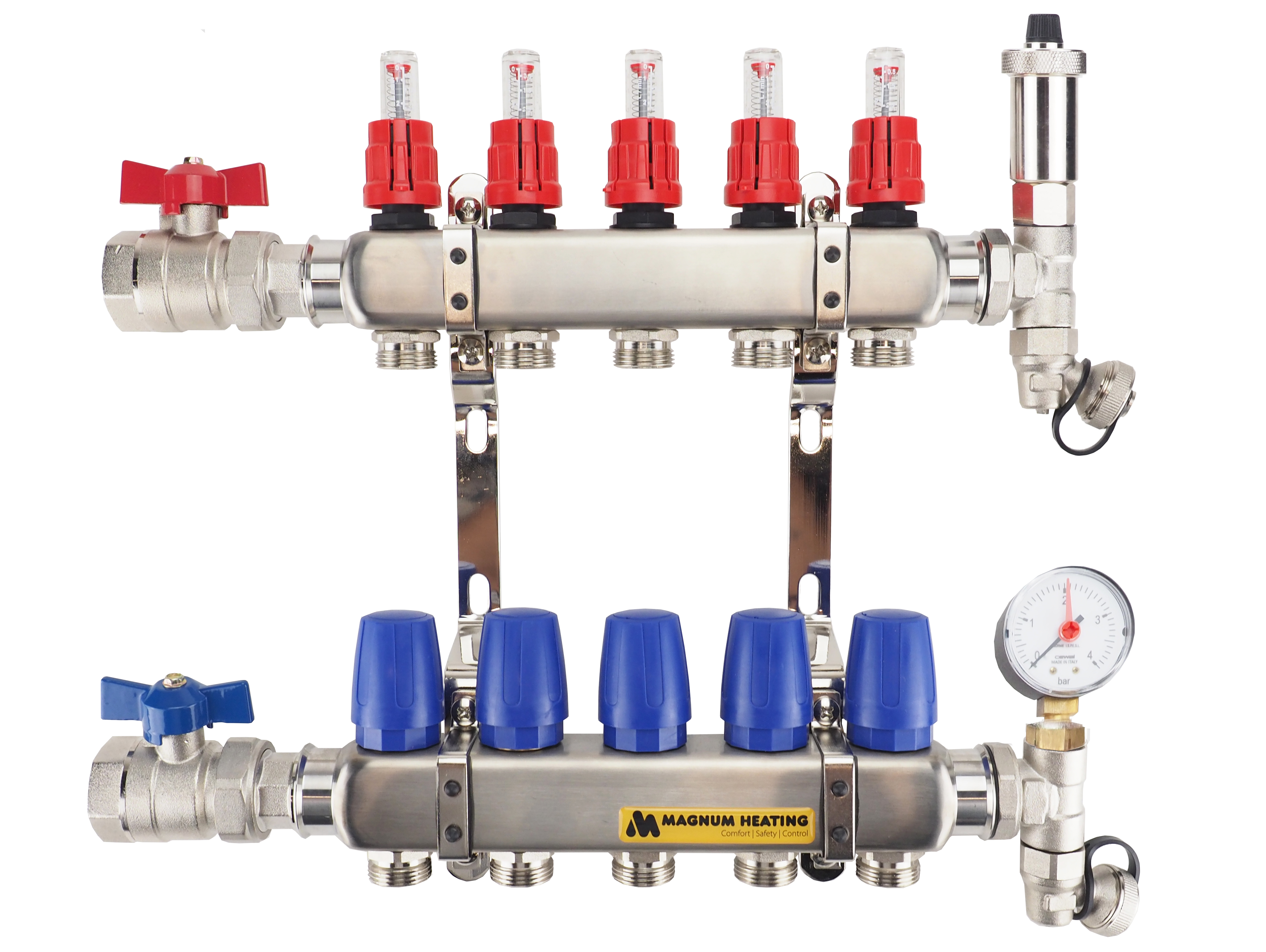

Premium Stainless Steel Open LT

Application

Central heating boiler	V
Heat pump	V
Solar heat (with buffer tank)	V
Pellet stove	V
District heating	V

Specifications

Valve on inlet	V
Thermostat on inlet	X
Pump	X
Flow meter	V
Thermometer	X
Pressure gauge	V
Air vent	V
Valve on return	V
RTL valve on return	X
In control valve mixing quantity	X
Stop valve between supply and return	X
Inspection	CE

Technical details

• The body of this manifold is stainless steel 4301
• Thermostatic group valves M30x 1,5 suitable for MAGNUM actuators
• Groups fitted with professional flow meters with a range of 0-2,5L/min
• Group connections suitable for ¾” Eurocones
• Primary connection 1” Sealable by ball valves
• Manifold is supplied with mounting material as standard
• Ball valve 1” with red handle
• Flow meter Camflux 2,5 L/m- 1/2”
• Pressure gauge 40 mm axial 1/8”
• Automatic air vent nickel-plated 1/2” + O-ring
• Ball valve 1” with blue handle

Package content

• Press report
• Installation instructions
• Warranty certificate
• Premium Stainless steel Open LT

Warranty
MAGNUM Premium stainless steel Open LT 10 years on body, 2 years on fittings.
